KNK Art No.: KMGX35

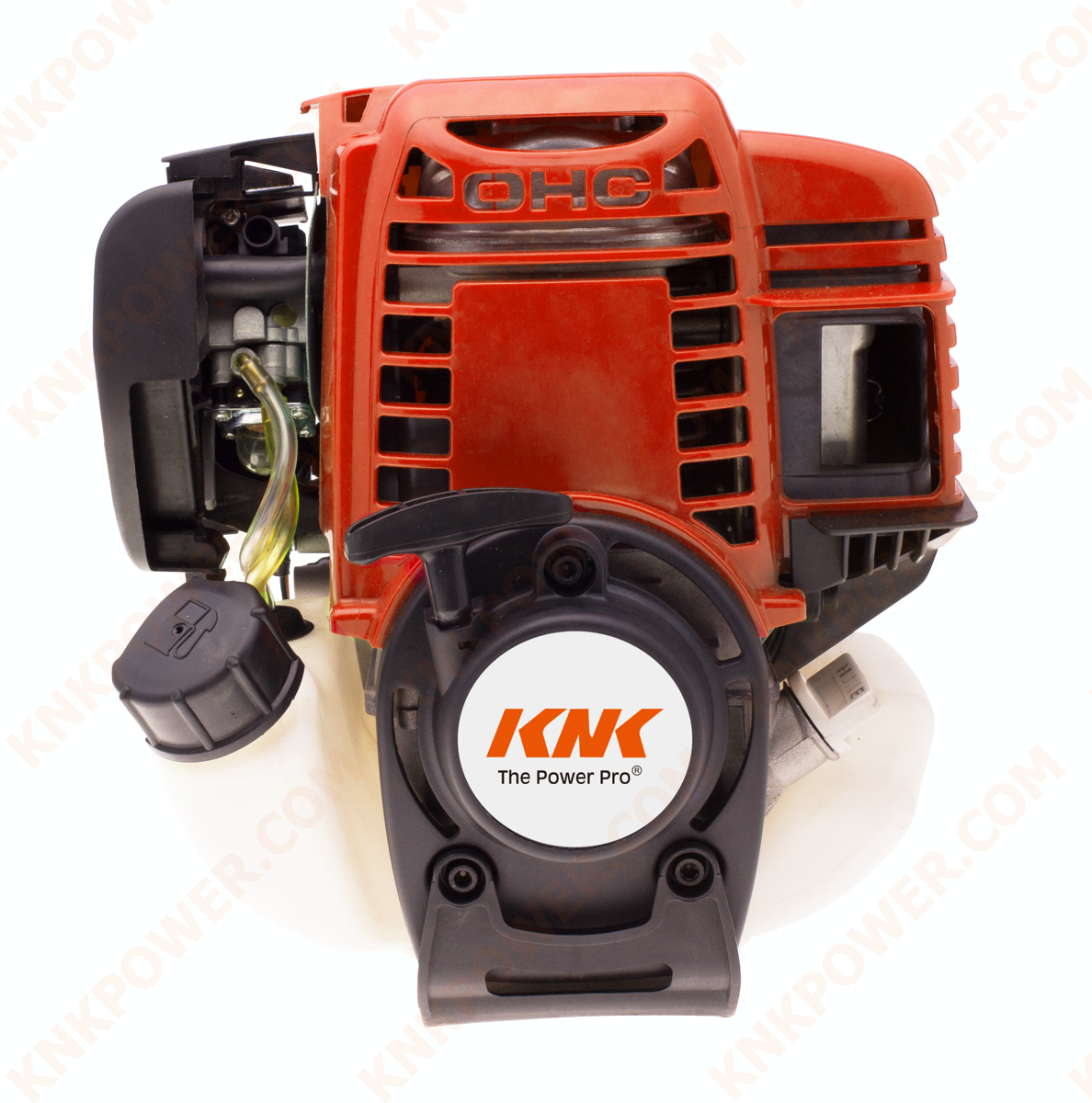

35.8CC 4 STROKE GASOLINE ENGINE
Displacement/bore x stroke: 35.8cc/39x30mm
Max power: 1.0kw/1.36HP
Fuel consumption: ≤540g/kwh
Fuel tank: 0.65L
N.W.: 3.8kgs
packing: 27x26.5x30cm
20'FCL: 1200PCS
Max power: 1.0kw/1.36HP
Fuel consumption: ≤540g/kwh
Fuel tank: 0.65L
N.W.: 3.8kgs
packing: 27x26.5x30cm
20'FCL: 1200PCS
Product Net Weight
3800g ≈ 3.8 kgs ≈ 134.04oz ≈ 8.38lbs
Fit For Model (Replacement Parts)
Related Brands (Replacement Parts)
Related Categories
↘︎SPARE PARTS LIST
| No. | KNK Art No. | Description | Qty | Button |
|---|
| E1 | KMGX35-E1 | SCREW M5*16 | 7 | More Info |
| E10 | KMGX35-E10 | VALVE SPRING SEAT | 2 | More Info |
| E100 | KMGX35-E100 | COIL SPRING | 1 | More Info |
| E101 | KMGX35-E101 | STARTER BODY | 1 | More Info |
| E102 | KMGX35-E102 | ROPE | 1 | More Info |
| E103 | KMGX35-E103 | STARTER HANDLE | 1 | More Info |
| E11 | KMGX35-E11 | VALVE SPRING | 2 | More Info |
| E12 | KMGX35-E12 | * | 0 | More Info |
| E13 | KMGX35-E13 | * | 0 | More Info |
| E14 | KMGX35-E14 | * | 0 | More Info |
| E15 | KMGX35-E15 | * | 0 | More Info |
| E16 | KMGX35-E16 | * | 0 | More Info |
| E17 | KMGX35-E17 | SYNCHRONOUS BELT | 1 | More Info |
| E18 | KMGX35-E18 | CAM WHEEL | 1 | More Info |
| E19 | KMGX35-E19 | CAM SHAFT | 1 | More Info |
| E2 | KMGX35-E2 | CYLINDER OUTSIDE COVER | 1 | More Info |
| E20 | KMGX35-E20 | STARTER REEL | 1 | More Info |
| E21 | KMGX35-E21 | STARTER | 1 | More Info |
| E22 | KMGX35-E22 | ADMITTING GASKET | 1 | More Info |
| E23 | KMGX35-E23 | CLIP | 2 | More Info |
| E24 | KMGX35-E24 | MUFFLER BAFFLE | 1 | More Info |
| E25 | KMGX35-E25 | NUT M5 | 2 | More Info |
| E26 | KMGX35-E26 | BOLT M5*45 | 2 | More Info |
| E27 | KMGX35-E27 | MUFFLER | 1 | More Info |
| E28 | KMGX35-E28 | MUFFLER BAFFLE | 1 | More Info |
| E29 | KMGX35-E29 | SPARK PLUG | 1 | More Info |
| E3 | KMGX35-E3 | SCREW M5*12 | 4 | More Info |
| E30 | KMGX35-E30 | CYLINDER (INCLUDE VALVE ROCKER SYSTEM) | 1 | More Info |
| E31 | KMGX35-E31 | FASTENER | 1 | More Info |
| E32 | KMGX35-E32 | IGNITON | 1 | More Info |
| E33 | KMGX35-E33 | SCREW M4*14 | 2 | More Info |
| E34 | KMGX35-E34 | WIRE | 1 | More Info |
| E35 | KMGX35-E35 | EXHAUST VALVE | 1 | More Info |
| E36 | KMGX35-E36 | INLET VALVE | 1 | More Info |
| E37 | KMGX35-E37 | BALANCING PRESSURE PIPE | 1 | More Info |
| E38 | KMGX35-E38 | * | 0 | More Info |
| E39 | KMGX35-E39 | O RING | 1 | More Info |
| E4 | KMGX35-E4 | CYLINDER VALVE COVER | 1 | More Info |
| E40 | KMGX35-E40 | BOLT M5*55 | 2 | More Info |
| E41 | KMGX35-E41 | ADMITTING PIPE | 1 | More Info |
| E42 | KMGX35-E42 | BLAST PIPE | 1 | More Info |
| E43 | KMGX35-E43 | GASKET | 1 | More Info |
| E44 | KMGX35-E44 | CARBURETOR | 1 | More Info |
| E45 | KMGX35-E45 | AIR FILTER INSIDE COVER | 1 | More Info |
| E46 | KMGX35-E46 | SCREW M5*22 | 6 | More Info |
| E47 | KMGX35-E47 | AIR FILTER | 1 | More Info |
| E48 | KMGX35-E48 | AIR FILTER OUTSIDE COVER | 1 | More Info |
| E49 | KMGX35-E49 | PISTON RING A | 1 | More Info |
| E5 | KMGX35-E5 | OIL GAS SEPARATOR | 1 | More Info |
| E50 | KMGX35-E50 | PISTON RING B | 1 | More Info |
| E51 | KMGX35-E51 | OIL SCRAPER RING | 2 | More Info |
| E52 | KMGX35-E52 | LINER RING | 1 | More Info |
| E53 | KMGX35-E53 | PISTON | 1 | More Info |
| E54 | KMGX35-E54 | CRANK SHAFT | 1 | More Info |
| E55 | KMGX35-E55 | PISTON PIN | 1 | More Info |
| E56 | KMGX35-E56 | OIL SEAL | 1 | More Info |
| E57 | KMGX35-E57 | OIL SCALE | 1 | More Info |
| E58 | KMGX35-E58 | O RING 14*2.65 | 1 | More Info |
| E59 | KMGX35-E59 | KEY 3*5*13 | 1 | More Info |
| E6 | KMGX35-E6 | OIL GAS SEPARATOR SEAT | 1 | More Info |
| E60 | KMGX35-E60 | OIL SEAL | 1 | More Info |
| E61 | KMGX35-E61 | REED VALVE | 1 | More Info |
| E62 | KMGX35-E62 | FLYWHEEL | 1 | More Info |
| E63 | KMGX35-E63 | NUT M8 | 1 | More Info |
| E64 | KMGX35-E64 | FLAT WASHER | 2 | More Info |
| E65 | KMGX35-E65 | CLUTCH EXPANDER SHOE | 2 | More Info |
| E66 | KMGX35-E66 | WAVE WASHER | 2 | More Info |
| E67 | KMGX35-E67 | SCREW PIN | 2 | More Info |
| E68 | KMGX35-E68 | PIN 4*8 | 4 | More Info |
| E69 | KMGX35-E69 | FLYWHEEL COVER | 1 | More Info |
| E7 | KMGX35-E7 | SCREW M4*8 | 4 | More Info |
| E70 | KMGX35-E70 | CRANK CASE | 1 | More Info |
| E71 | KMGX35-E71 | SCREW M5*32 | 4 | More Info |
| E72 | KMGX35-E72 | FUEL TANK CAP | 1 | More Info |
| E73 | KMGX35-E73 | AIR ADMISSION VALVE | 1 | More Info |
| E74 | KMGX35-E74 | INSIDE COVER | 1 | More Info |
| E75 | KMGX35-E75 | SHELL COVER | 1 | More Info |
| E76 | KMGX35-E76 | AIRPROOF GASKET | 1 | More Info |
| E77 | KMGX35-E77 | RUBBER CUSHION | 4 | More Info |
| E78 | KMGX35-E78 | FUEL TANK | 1 | More Info |
| E79 | KMGX35-E79 | PLUG | 1 | More Info |
| E8 | KMGX35-E8 | RUBBER CUSHION | 1 | More Info |
| E80 | KMGX35-E80 | FUEL RETURN PIPE | 1 | More Info |
| E81 | KMGX35-E81 | FUEL SUCTION PIPE | 1 | More Info |
| E82 | KMGX35-E82 | FUEL FILTER | 1 | More Info |
| E83 | KMGX35-E83 | PISTON CIRCLIP | 2 | More Info |
| E84 | KMGX35-E84 | SCREW ST4.3*8 | 1 | More Info |
| E85 | KMGX35-E85 | CHOKE HANDLE | 1 | More Info |
| E86 | KMGX35-E86 | CHOKE | 1 | More Info |
| E87 | KMGX35-E87 | IGNITION SPRING | 1 | More Info |
| E88 | KMGX35-E88 | IGNITION PLUG | 1 | More Info |
| E89 | KMGX35-E89 | IGNITION COMP. | 1 | More Info |
| E9 | KMGX35-E9 | RUBBER CUSHION | 1 | More Info |
| E90 | KMGX35-E90 | CLUTCH EXPANDER SPRING | 1 | More Info |
| E91 | KMGX35-E91 | SCREW ST4.3*8 | 2 | More Info |
| E92 | KMGX35-E92 | CYLINDER INSIDE COVER | 1 | More Info |
| E93 | KMGX35-E93 | FUEL TANK PROTECTOR | 1 | More Info |
| E94 | KMGX35-E94 | FUEL TANK CAP COMP. | 1 | More Info |
| E95 | KMGX35-E95 | FUEL TANK COMP. | 1 | More Info |
| E96 | KMGX35-E96 | SCREW PIN | 1 | More Info |
| E97 | KMGX35-E97 | DRIVING LEVER SEAT | 1 | More Info |
| E98 | KMGX35-E98 | DRIVING LEVER | 1 | More Info |
| E99 | KMGX35-E99 | ROPE REEL | 1 | More Info |
| 79 TO 82 | KMGX35-79 TO 82 | fuel tube assy | More Info |
